Factory direct supply tungsten carbide thread nozzle YG8 YG10 YG15 for PDC bit
The cemented carbide threaded nozzle is mainly used on PDC bits for drilling and mining, and is made of all hard aggregate materials. It is characterized by high wear resistance, high strength and corrosion resistance. Kedal Tools can produce various types of cemented carbide threaded nozzles, that is, there are standard products from world-famous drilling and production companies, and can accept ODM and OEM customized services.
Product introduction:
Cemented carbide threaded nozzle is usually used on oil drill bits, which can clean drill bits and excavated bottoms, and is firm, wear-resistant, and has a long service life. Carbide nozzle is solid and durable, and has high cost performance. The cemented carbide nozzle is made of precision machinery and cemented carbide materials, with bending resistance of 2300N/mm and hardness of 90 degrees. When machining cemented carbide nozzles, we need to achieve precision grinding and surface treatment.
Product features:
1, 100% vergin raw material;
2, Different grades and sizes of nozzles are available according to customer requirements;
3) We have advanced precision grinding equipment and testing equipment to ensure high-quality products;
4) More than 10 years of production experience, rich production technology of workers to ensure product consistency;
5) Stable product quality and perfect after-sales service;
6) The product has high strength, high abrasion resistance and strong impact resistance;
Material grade performance table:
| Grade | Co(%) | Density(g/cm3 ) | Hardness(HRA) | TRS(NN/mm²) |
| YG6 | 5.5-6.5 | 14.90 | 90.50 | 2500 |
| YG8 | 7.5-8.5 | 14.75 | 90.00 | 3200 |
| YG9 | 8.5-9.5 | 14.60 | 89.00 | 3200 |
| YG9C | 8.5-9.5 | 14.60 | 88.00 | 3200 |
| YG10 | 9.5-10.5 | 14.50 | 88.50 | 3200 |
| YG11 | 10.5-11.5 | 14.35 | 89.00 | 3200 |
| YG11C | 10.5-11.5 | 14.35 | 87.50 | 3000 |
| YG13C | 12.7-13.4 | 14.20 | 87.00 | 3500 |
| YG15 | 14.7-15.3 | 14.10 | 87.50 | 3200 |

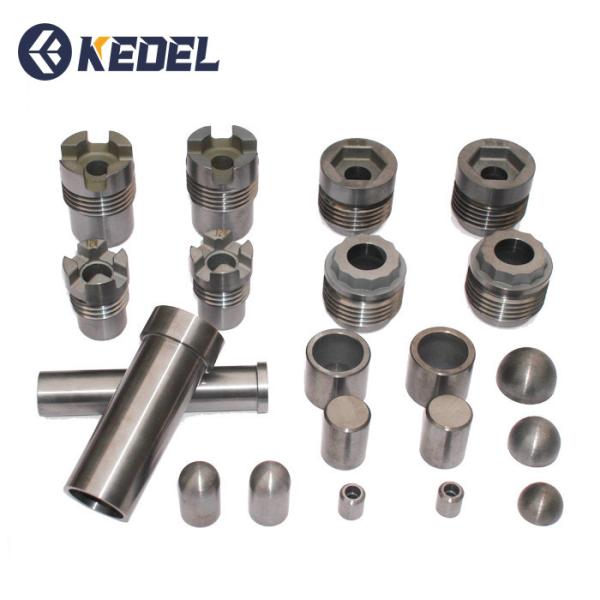

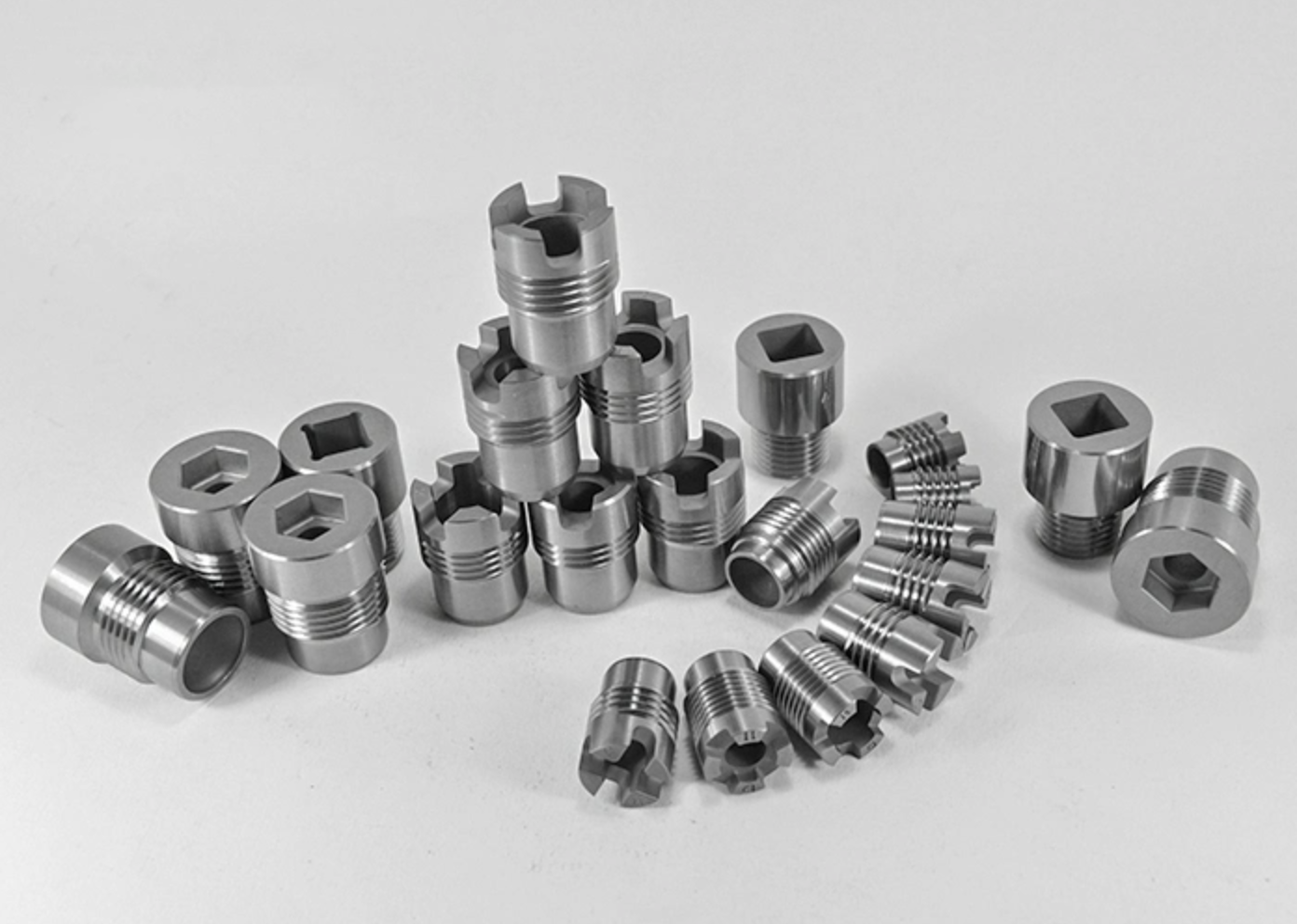

Product detail drawing:
